Tamiya Vintage 1/20 RC Mammoth Dump Truck 58268

£650.99

This is for kit only, however, if you require this model as Built or RTR an additional price will be added, please email to discuss further options.

Out of stock

Description

This Kit is NOS and is not available anymore, this was offered for sale in the year 2000 and they are extremely rare.

Here is your chance to own your very own Mammoth Dump Truck.

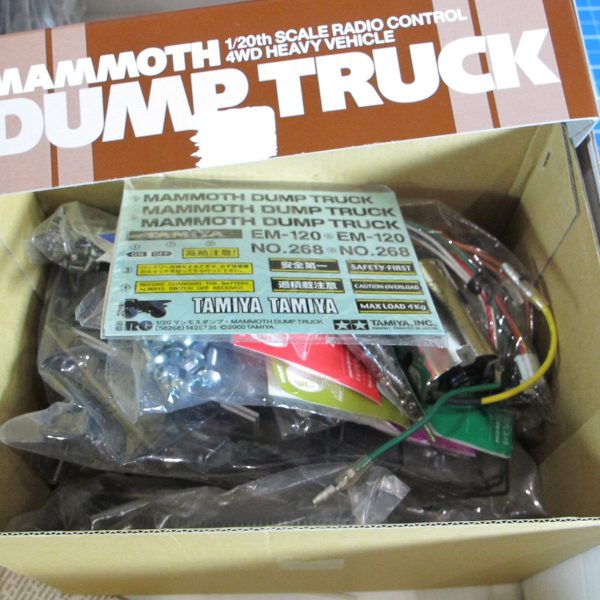

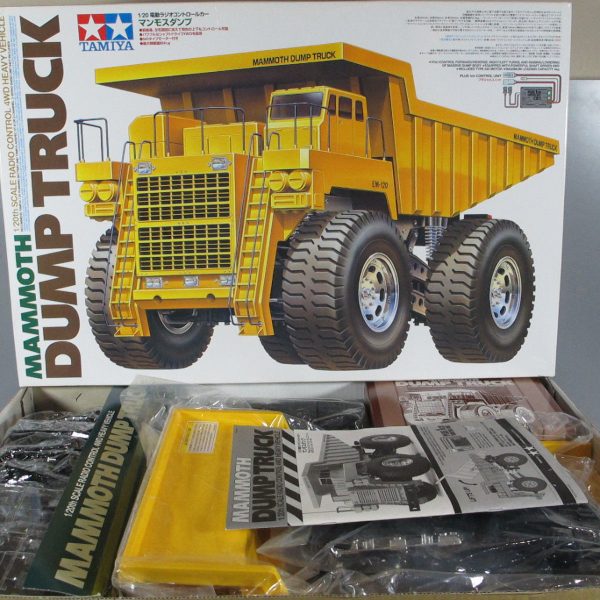

The box may be dusty and faded as it has been in storage but is complete, all parts sealed.

Transmitter & Receiver, Servos and Battery can be added at extra cost.

Tamiya has released Mammoth Dump Truck in 1/20 R/C Models AWD drivetrain assembly kit under Off-Road Monster Trucks category

#58268 Tamiya – 1/20 RC Mammoth Dump Truck

Tamiya 58268 – 1/20 RC Mammoth Dump Truck

This is the Tamiya 1/20th Scale Electric, Radio Controlled Mammoth Dump Truck.
This heavy duty kit is based on the earthshaking mammoth dump trucks used in large scale mining and other heavy duty jobs.

FEATURES:

Powerful shaft driven 4WD.
Two motors; one 540 size to drive the wheels; one smaller motor with worm gear shaft for dump body operation.
Kit uses two channel radio for all functions, to raise bed stop vehicle and steer right for more than one second, return steering
to neutral to stop raising, steer left for lowering. No need for expensive three channel radios.

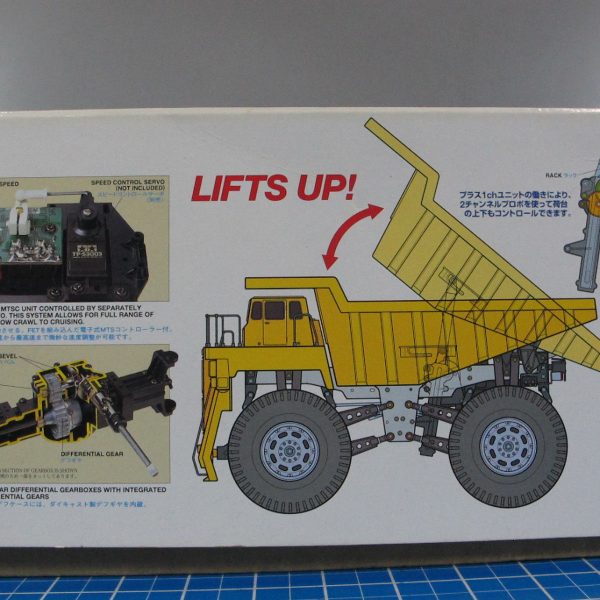

Fully operational dump body can hold up to 8.8 lbs (4kg) of material for dumping.

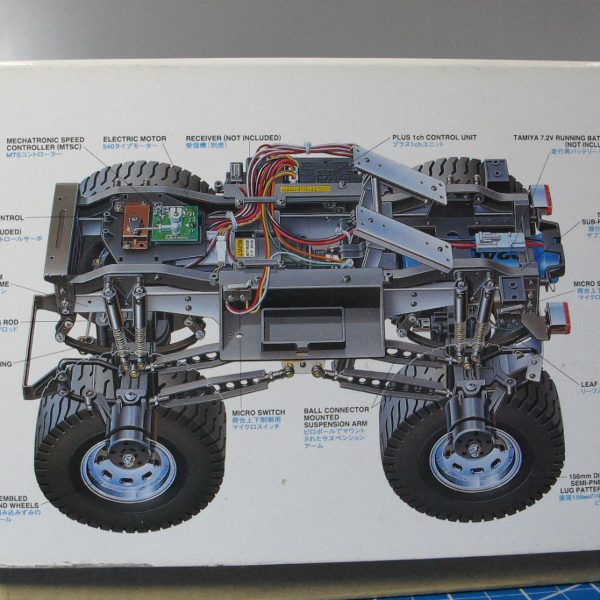

Durable die-cast gears housed in front and rear sealed gearboxes.
Four wheel suspension equipped with coil and leaf spring shock units.
Durable Juggernaut 2 Monster Truck chassis.
Cab and dump body are molded in shock resistant plastic.

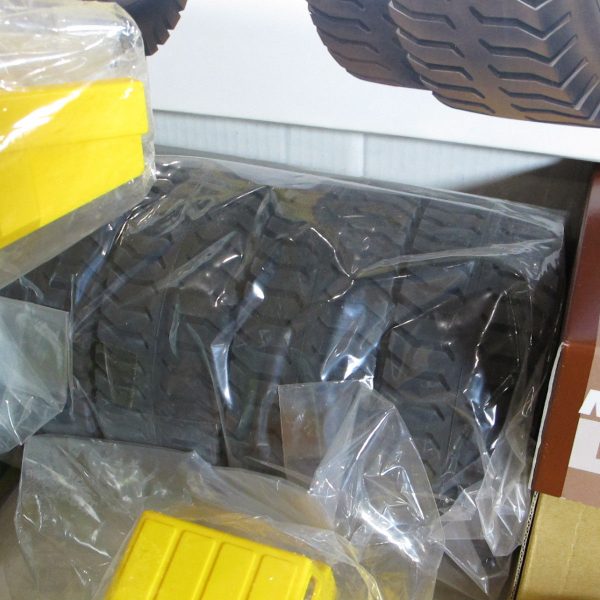

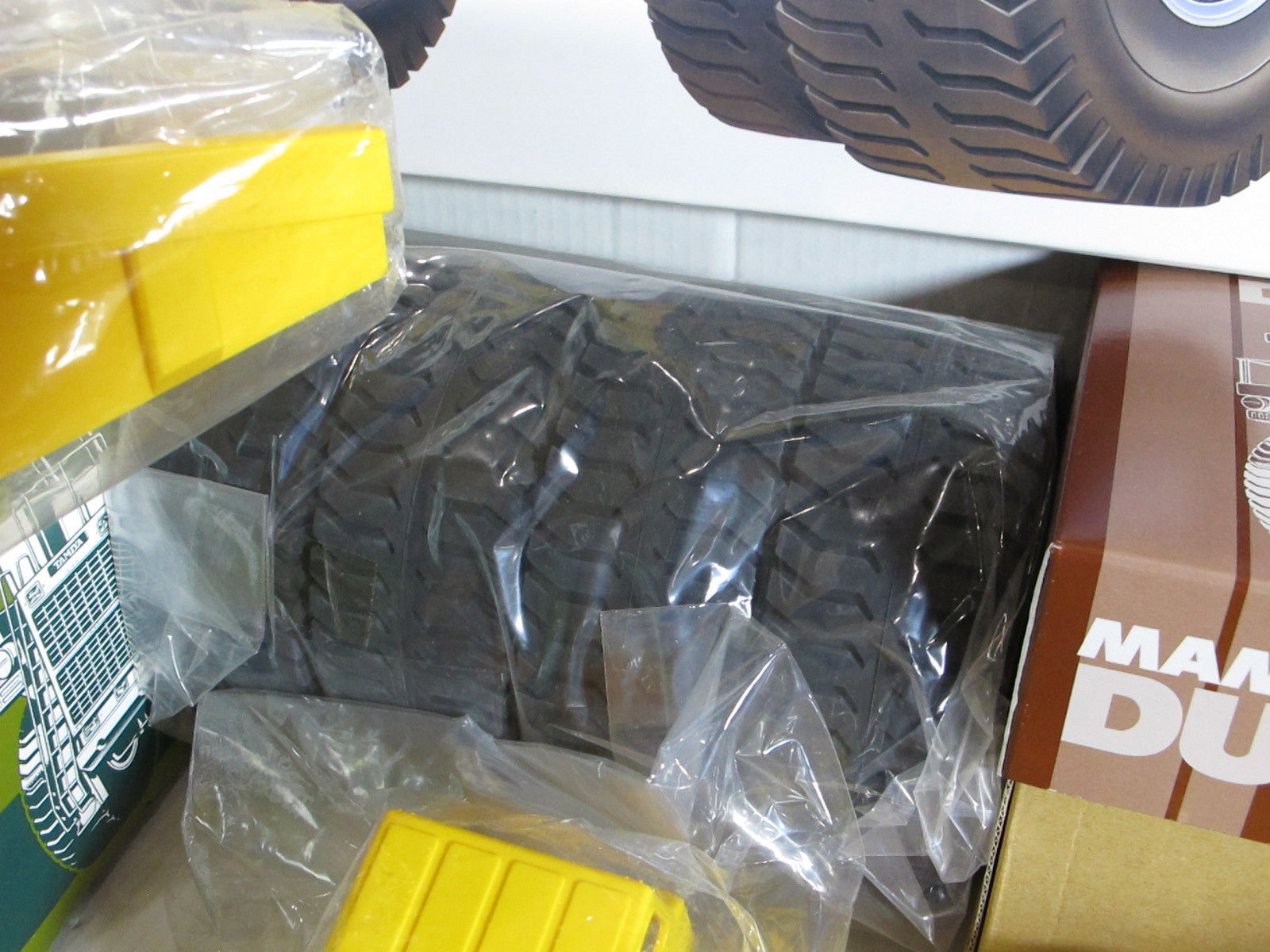

6-1/8″ (156mm) diameter 2-3/8″ (60mm) wide rubber tread tires pre- mounted on plastic metal finish wheels.

INCLUDES:

One 1/20th Scale Electric Radio Control Mammoth Dump Truck with electronic speed control with Futaba J receiver plugs and Standard battery connectors, 6-1/8″ (156mm) x 2-3/8″ (60mm) rubber tread tires pre-mounted on plastic metal finish wheels, one tube thread locking compound, one 4-way wrench, two tubes of grease, plastic ties, flat blade screwdriver, body pins, double sided tape, two hex wrenches.

REQUIRES:

Radio: 2 channel pistol grip with two servos.
Battery: 7.2v flat stick pack.
Tools: large and small blade phillips screwdrivers, tweezers, modeling knife, long nose pliers, side cutters, scissors, pin vise
and plastic cement.

SPECS: Length: 20-5/8″ (525mm)
Width: 11-5/8″ (295mm)
Height: 11-13/16″ (300mm)
Weight: 12.2 lbs (5.5kg)
